S3 SURFACES · 2026 CATALOGUE

Pattern Library

A catalogue-led reference to the current S3 pattern collection — from fine textures and woven geometries to bold reliefs, door patterns and directional wave forms, now including large-format Murals & Portraits.

Metallic Bonded Crystal-Quartz Bonded Murals & Portraits Materials & Finishes

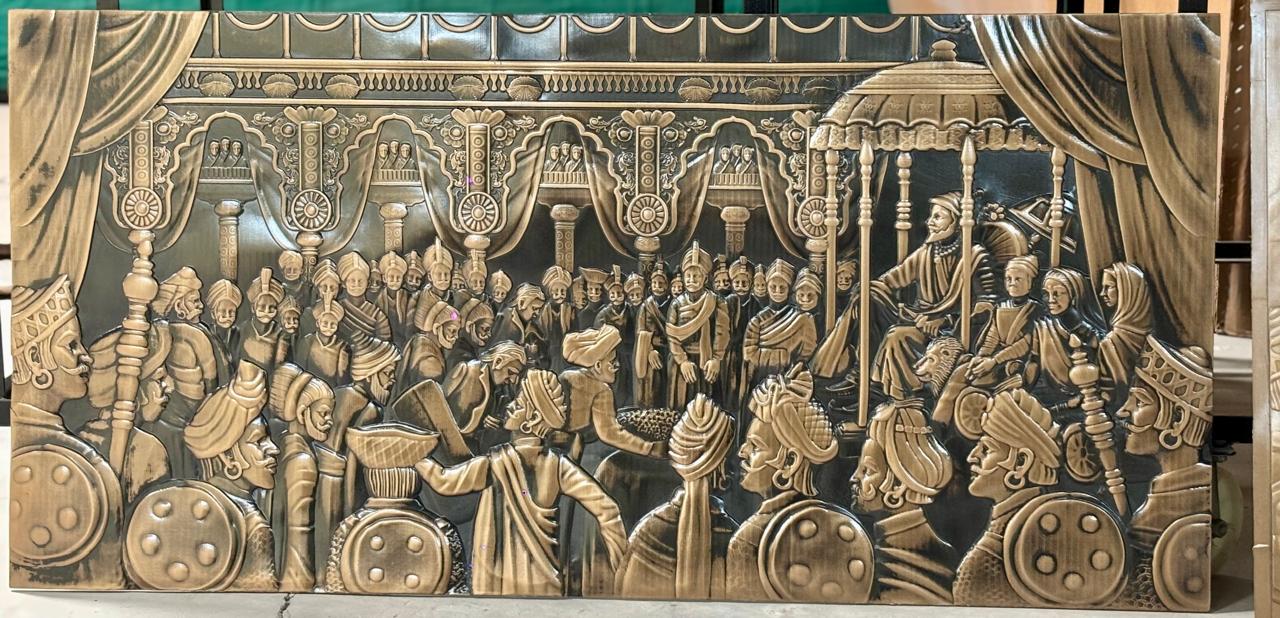

S3 large-format relief mural showing a historical court scene

S3 relief portrait in a dark metallic finish

S3 relief portrait in a bronze metallic finish

VISUAL INDEX

Pattern by name. Swatch by material.

The Pattern Library separates Metallic Bonded and Crystal-Quartz Bonded visual references so material selection is easier to understand. Pattern names are used throughout this page; technical selection should be confirmed against physical samples and current specifications.

METALLIC BONDED

BEAD-BLAST
CHARLESTON-MAT
CHESS
CHEVRON
CREEPER
CUTTER
ECLIPSIS — Door Pattern
EGYPTIAN
FABRIC
FEATHER
FLUTED
FROND
GRASS-TUNDRA
GROOVED
HONEYCOMB
LOUVER
PETAL
PRISMATIC
SOLARIS
THAR
TREAD
WEB
WHIRL
WOVEN

CRYSTAL-QUARTZ BONDED

BEAD-BLAST
CHARLESTON-MAT
CHESS
CHEVRON
CREEPER
CUTTER
ECLIPSIS — Door Pattern
EGYPTIAN
FABRIC
FEATHER
FLUTED
FROND
GRASS-TUNDRA
GROOVED
HONEYCOMB
LOUVERS
PETAL
PRISMATIC
SOLARIS — Door Pattern
THAR
TREAD
WAVES — CROSS
WAVES — HORIZONTAL-1
WAVES — HORIZONTAL-2
WAVES — VERTICAL

METALLIC BONDED

Small Sample Swatches

Catalogue swatches below are taken from the 2026 S3 Surfaces Product Catalogue. Metallic Bonded samples are shown in the metal finishes represented in the catalogue, including Bronze, Aluminium, Nickel-Silver, Gold-Bronze and Copper where shown.

BEAD-BLAST

Catalogue sample swatches shown for visual reference.

CHESS

Catalogue sample swatches shown for visual reference.

CHARLESTON-MAT

Catalogue sample swatches shown for visual reference.

CHEVRON

Catalogue sample swatches shown for visual reference.

CREEPER

Catalogue sample swatches shown for visual reference.

CUTTER

Catalogue sample swatches shown for visual reference.

ECLIPSIS — Door Pattern

Catalogue sample swatches shown for visual reference.

EGYPTIAN

Catalogue sample swatches shown for visual reference.

FABRIC

Catalogue sample swatches shown for visual reference.

FEATHER

Catalogue sample swatches shown for visual reference.

FROND

Catalogue sample swatches shown for visual reference.

FLUTED

Catalogue sample swatches shown for visual reference.

LOUVER

Catalogue sample swatches shown for visual reference.

GROOVED

Catalogue sample swatches shown for visual reference.

HONEYCOMB

Catalogue sample swatches shown for visual reference.

PETAL

Catalogue sample swatches shown for visual reference.

PRISMATIC

Catalogue sample swatches shown for visual reference.

TREAD

Catalogue sample swatches shown for visual reference.

WEB

S3 Surfaces Metallic Bonded catalogue sample swatch — WEB

Catalogue sample swatches shown for visual reference.

WOVEN

Catalogue sample swatches shown for visual reference.

WHIRL

Catalogue sample swatches shown for visual reference.

CRYSTAL-QUARTZ BONDED

Small Sample Swatches

Catalogue swatches below are separated from Metallic Bonded and show the Crystal-Quartz material in the white and charcoal visual references available in the 2026 catalogue. Only catalogue imagery is used; where a dedicated pattern sample is not available, it is not invented.

BEAD-BLAST

Catalogue sample swatches shown for visual reference.

CHESS

Catalogue sample swatches shown for visual reference.

CHEVRON

Catalogue sample swatches shown for visual reference.

CREEPER

Catalogue sample swatches shown for visual reference.

CUTTER

Catalogue sample swatches shown for visual reference.

HONEYCOMB

Catalogue sample swatches shown for visual reference.

TREAD

Catalogue sample swatches shown for visual reference.

PRISMATIC

Catalogue sample swatches shown for visual reference.

WAVES — CROSS

Catalogue sample swatches shown for visual reference.

WAVES — HORIZONTAL

Catalogue sample swatches shown for visual reference.

WAVES — VERTICAL

Catalogue sample swatches shown for visual reference.

SELECTED FULL-SIZE CATALOGUE VIEWS

Full-Size Pattern Views

Larger pattern views reproduced from the 2026 S3 Surfaces Product Catalogue. Pattern names are shown without catalogue codes; repeats are retained where the catalogue provides more than one view.

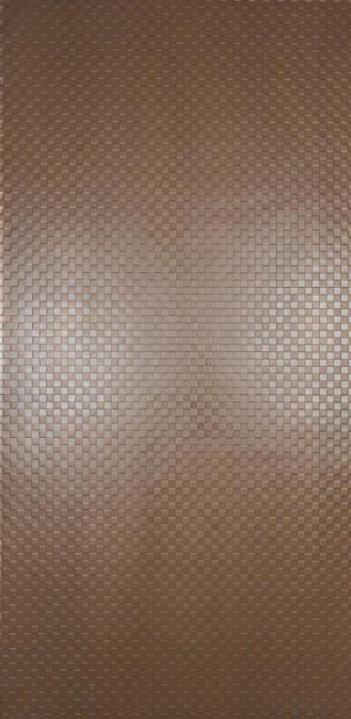

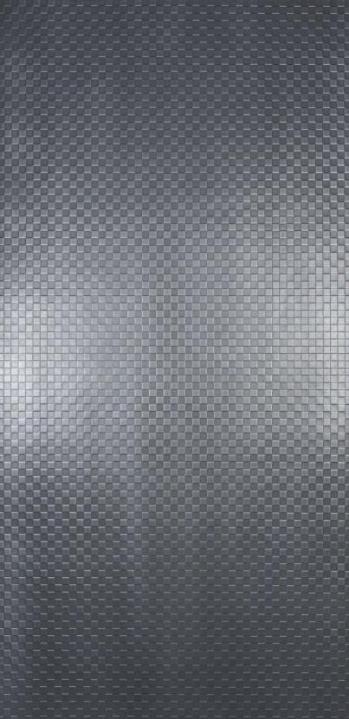

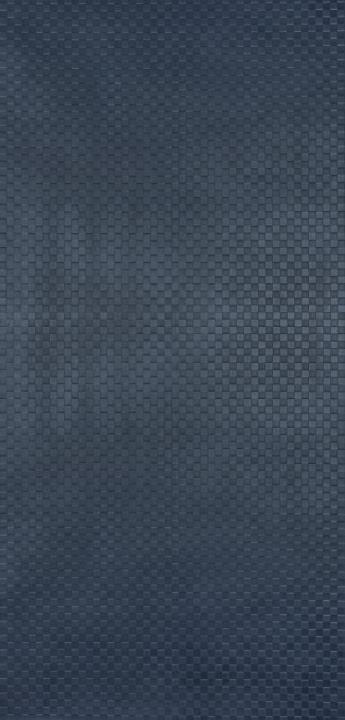

S3 Surfaces catalogue full-size pattern view CHESS — CHESS

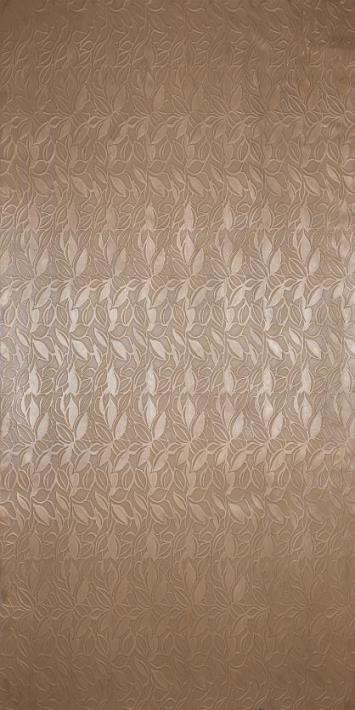

S3 Surfaces catalogue full-size pattern view CREEPER — CREEPER

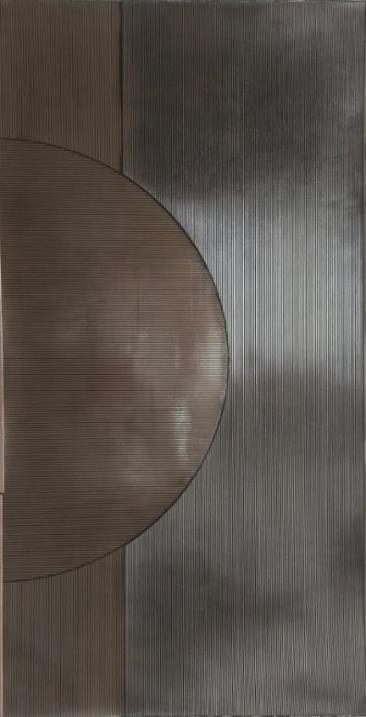

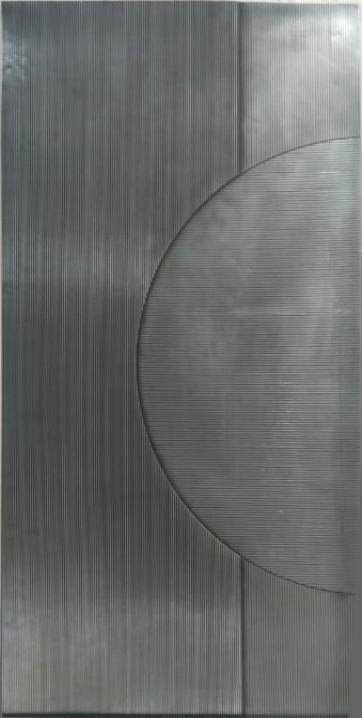

S3 Surfaces catalogue full-size pattern view ECLIPSIS — Door Pattern — ECLIPSIS — Door Pattern

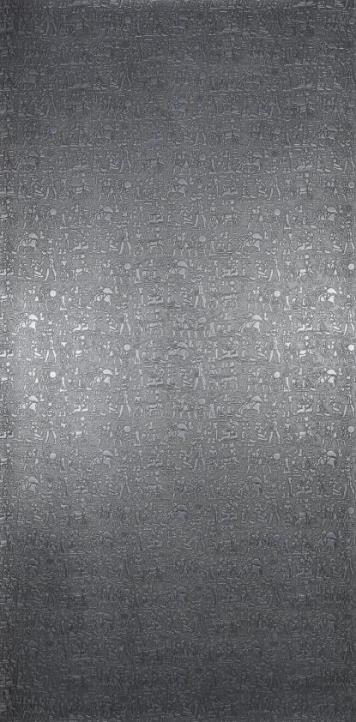

S3 Surfaces catalogue full-size pattern view EGYPTIAN — EGYPTIAN

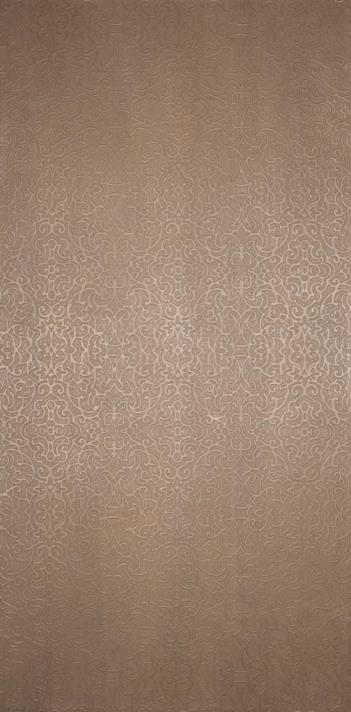

S3 Surfaces catalogue full-size pattern view FABRIC — FABRIC

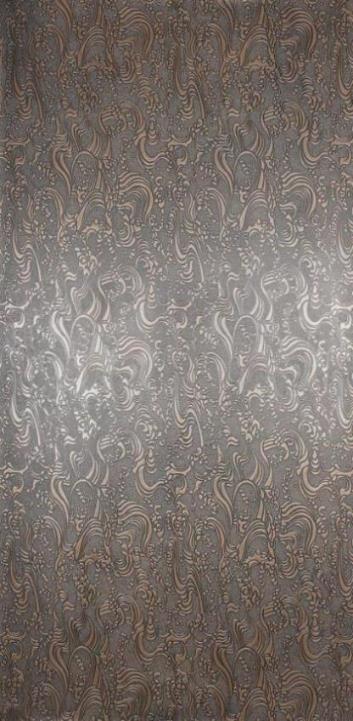

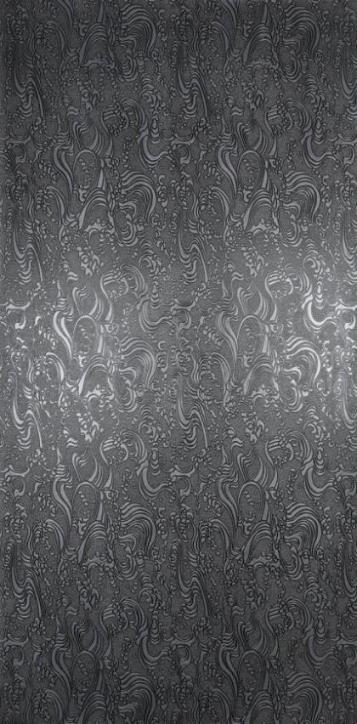

S3 Surfaces catalogue full-size pattern view FEATHER — FEATHER

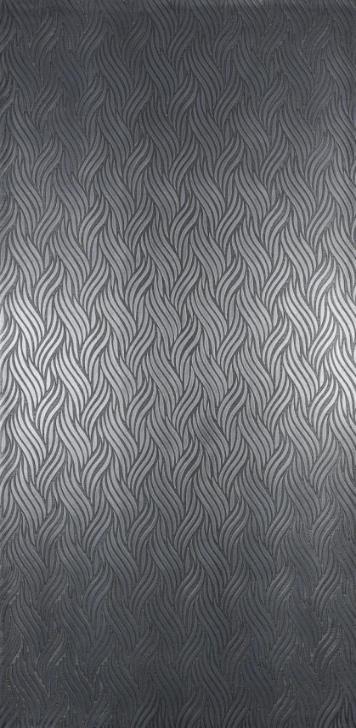

S3 Surfaces catalogue full-size pattern view FROND — FROND

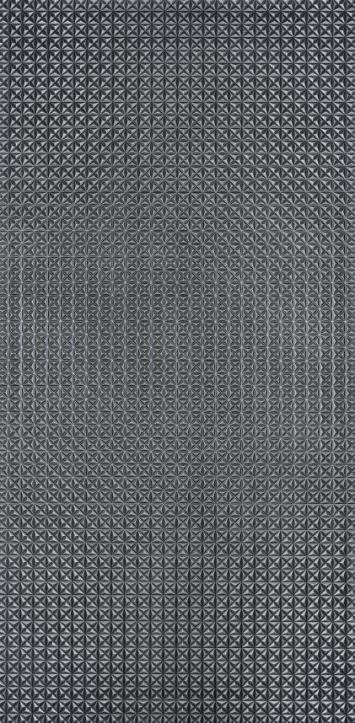

S3 Surfaces catalogue full-size pattern view PRISMATIC — PRISMATIC

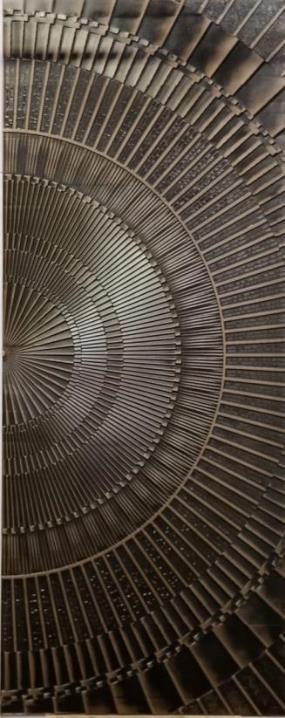

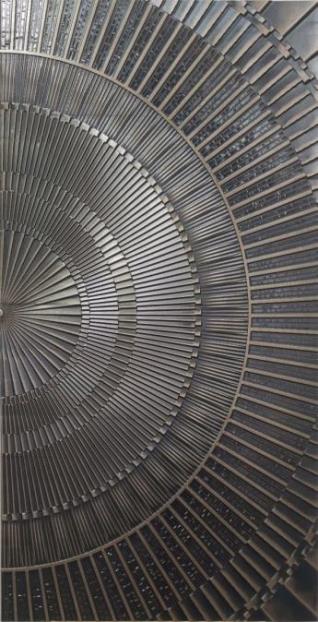

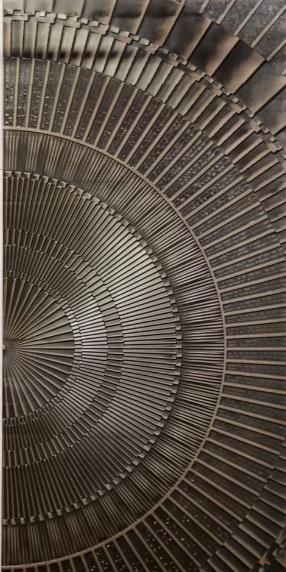

S3 Surfaces catalogue full-size pattern view SOLARIS — SOLARIS

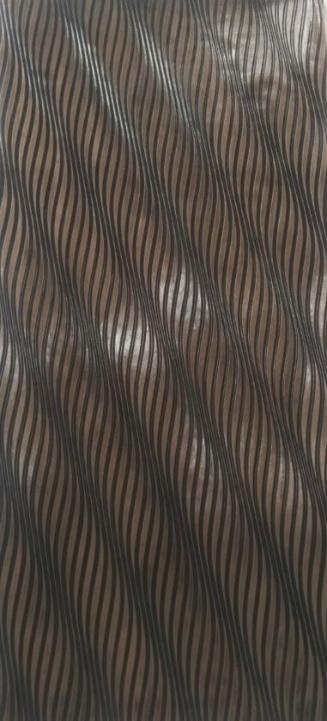

S3 Surfaces catalogue full-size pattern view THAR — THAR

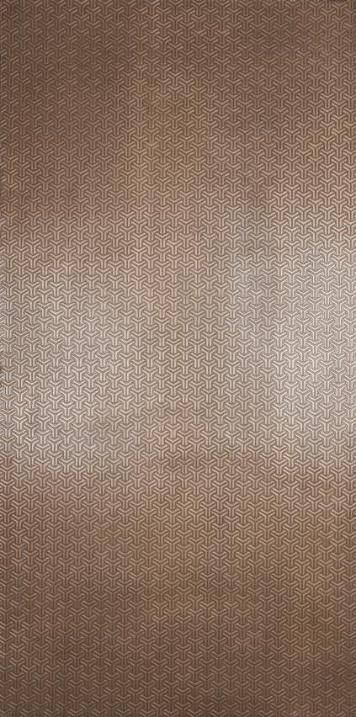

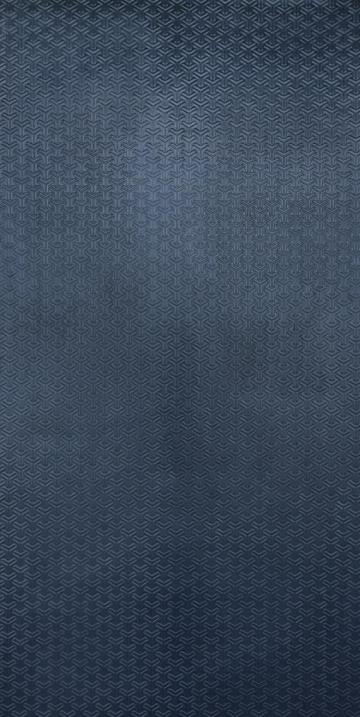

S3 Surfaces catalogue full-size pattern view TREAD — TREAD

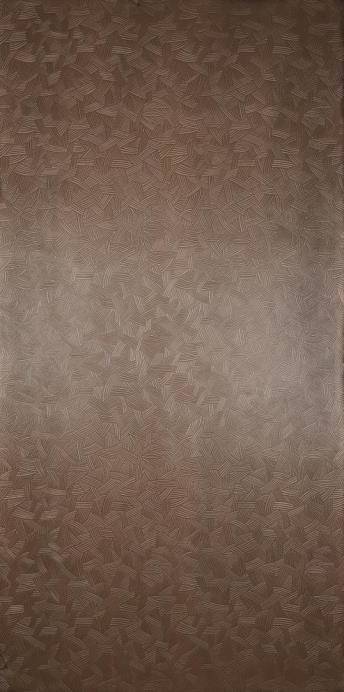

S3 Surfaces catalogue full-size pattern view WEB — WEB

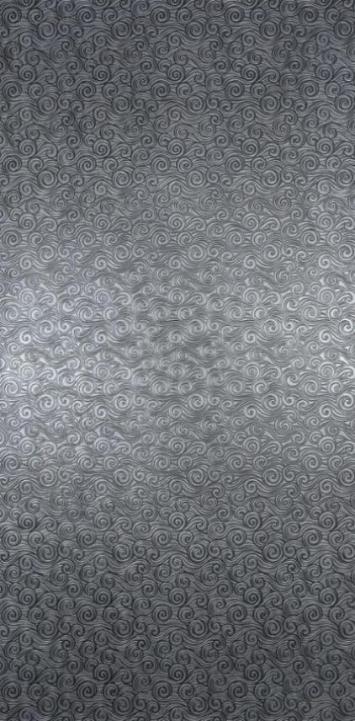

S3 Surfaces catalogue full-size pattern view WHIRL — WHIRL

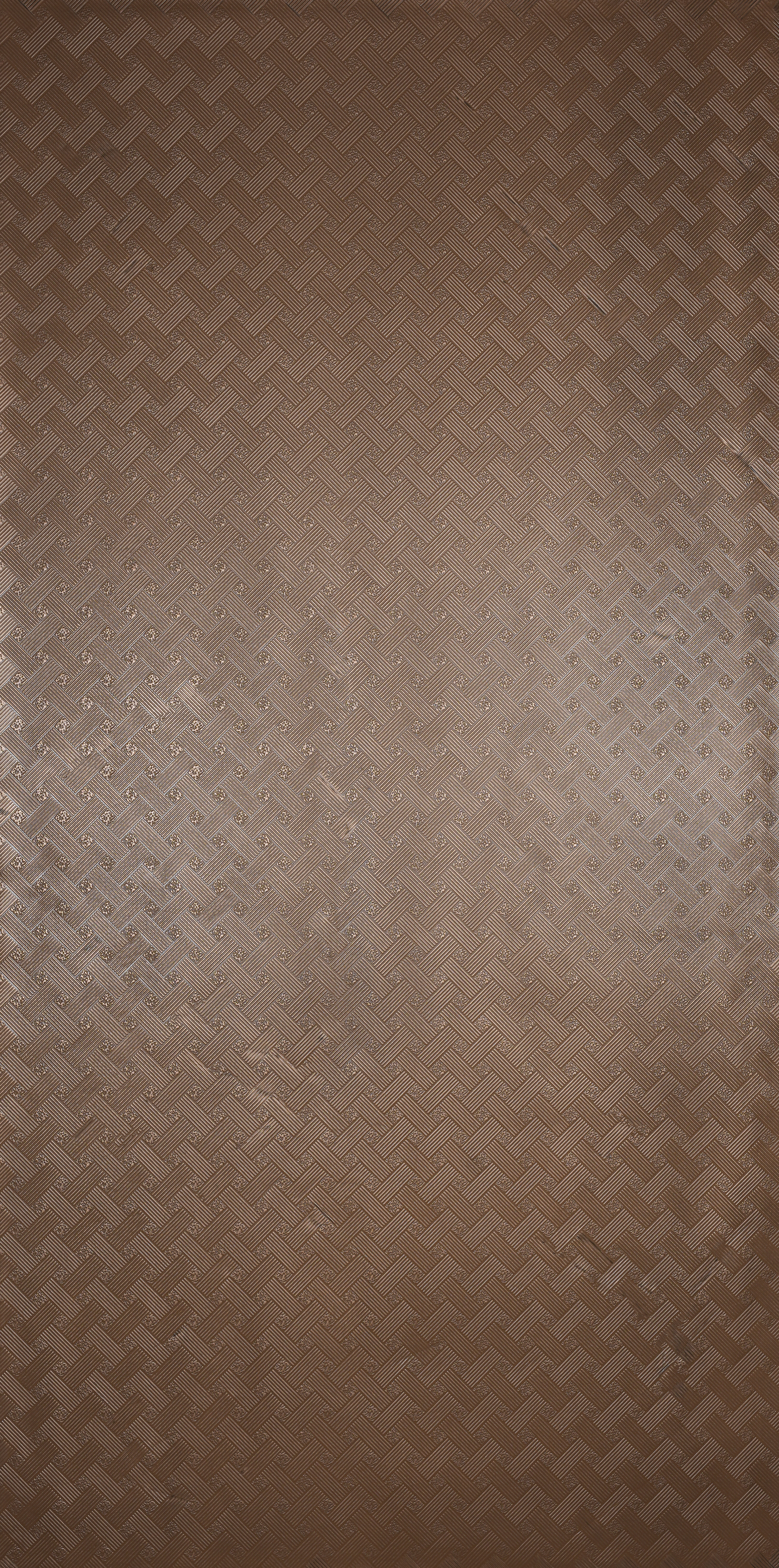

S3 Surfaces catalogue full-size pattern view WOVEN — WOVEN

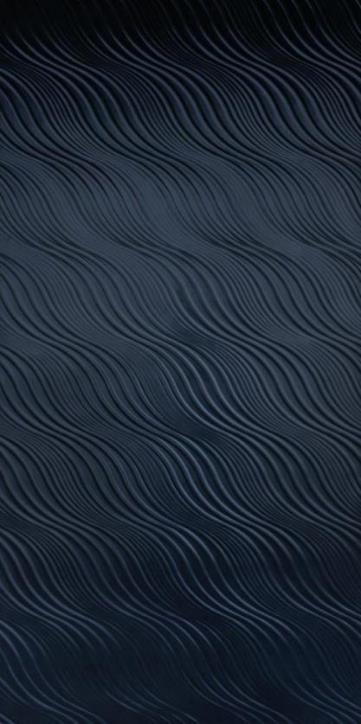

S3 Surfaces catalogue full-size pattern view WAVES — CROSS — WAVES — CROSS

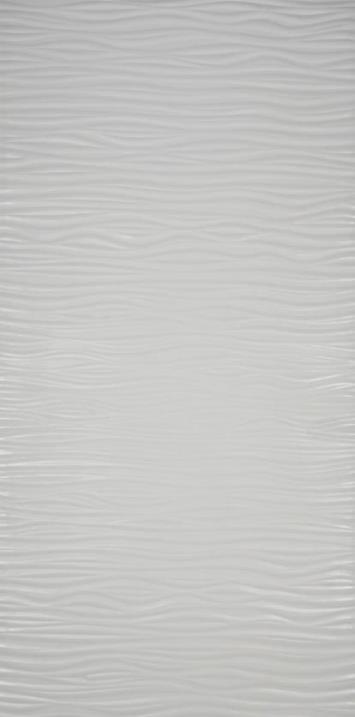

S3 Surfaces catalogue full-size pattern view WAVES — HORIZONTAL-1 — WAVES — HORIZONTAL-1

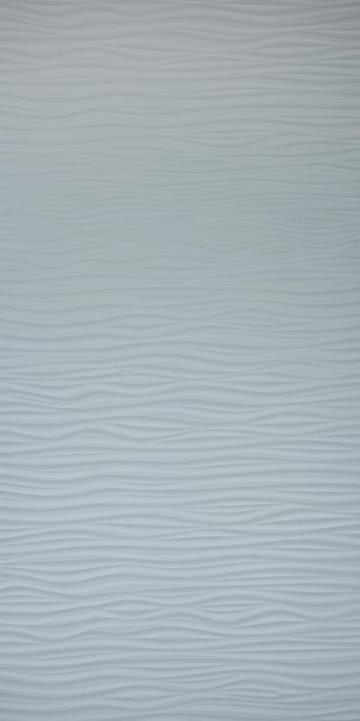

S3 Surfaces catalogue full-size pattern view WAVES — HORIZONTAL-2 — WAVES — HORIZONTAL-2

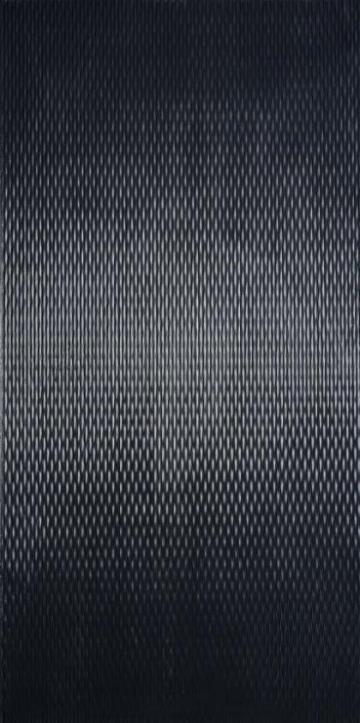

S3 Surfaces catalogue full-size pattern view HONEYCOMB 1 — HONEYCOMB 1

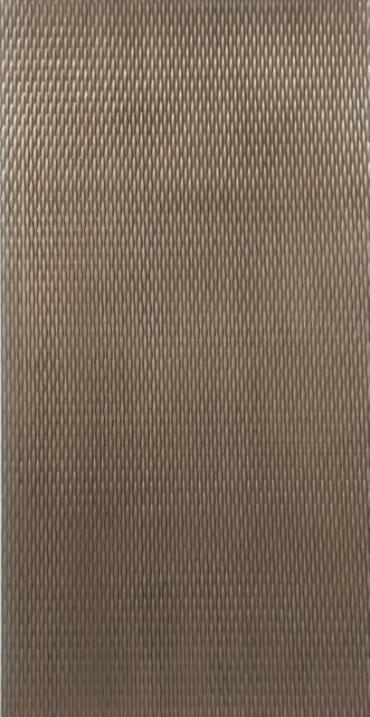

S3 Surfaces catalogue full-size pattern view HONEYCOMB 2 — HONEYCOMB 2

Catalogue full-size views shown for visual reference.

PRODUCT FAMILY 01

Metallic Bonded

Twenty-four documented Metallic Bonded patterns from the 2026 S3 Surfaces Product Catalogue.

View Metallic Bonded

documented patterns

SL / A / B / C

pattern types

2.25–8.0 mm

listed thickness range

Natural / Dark

patina system

Pattern	Type	Thickness	Sheet Size	Available Finishes
BEAD-BLAST	STANDARD (SL/A)	0.100” / 0.120” (2.5 / 3.0 mm)	48” x 96” / 120” (1219 x 2438 / 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
CHARLESTON-MAT	STANDARD (B)	0.138” (3.5 mm)	36” x 120” (915 x 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
CHESS	SLIMLINE (SL) / STANDARD (A)	0.100” / 0.120” (2.5 / 2.9 mm)	47.35” x 95.60” (1203 x 2428 mm)	Bronze (Natural only), Aluminium (Natural only), Nickel-Silver (Natural only), Gold-Bronze (Natural)
CHEVRON	STANDARD (B)	0.134” (3.4 mm)	48” x 120” (1219 x 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
CREEPER	STANDARD (A)	0.120” (2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
CUTTER	STANDARD (A)	0.120” (2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze (Natural only), Aluminium (Natural only), Nickel-Silver (Natural only), Gold-Bronze (Natural)
ECLIPSIS	STANDARD – Left & Right-hand sheets (C)	0.178” (6.5 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
EGYPTIAN	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
FABRIC	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
FEATHER	STANDARD (A)	0.120” (2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
FLUTED	STANDARD (B)	0.138” (3.5 mm)	48” x 120” (1219 x 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
FROND	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
GRASS-TUNDRA	STANDARD (A)	0.138” (3.5 mm)	48” x 120” (1219 x 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
GROOVED	STANDARD (B)	0.138” (3.5 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
HONEYCOMB	STANDARD (C)	0.210” (5.3 mm)	48” x 96” (1219 x 2438 mm)	Bronze (Natural only), Aluminium (Natural only), Nickel-Silver (Natural only), Gold-Bronze (Natural)
LOUVER	STANDARD (B)	0.155” (3.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
PETAL	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
PRISMATIC	STANDARD (C)	0.256” (6.5 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
SOLARIS	STANDARD – Left & Right-hand sheets (C)	0.315” (8.0 mm)	48” x 96” / 120” (1219 x 2438 / 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
THAR	STANDARD (B)	0.147” (3.7 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver (Dark only), Gold-Bronze (Natural)
TREAD	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
WEB	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
WHIRL	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
WOVEN	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)

Specification values follow the 2026 S3 Surfaces Product Catalogue. Current commercial availability should be confirmed at enquiry / quotation stage. Physical samples should be used to verify actual colour, texture and finish; handcrafted surfaces may exhibit minor artistic variation.

PRODUCT FAMILY 02

Crystal-Quartz Bonded

Twenty-five documented Crystal-Quartz Bonded patterns from the 2026 S3 Surfaces Product Catalogue.

View Crystal-Quartz Bonded

documented patterns

A / B / C

pattern types

3.0–8.0 mm

listed thickness range

2 standard colours

Bianca-White / Carbone-Charcoal

Pattern	Type	Standard Colours	Thickness	Sheet Size
BEAD-BLAST	STANDARD (SL/A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
CHARLESTON-MAT	STANDARD (B)	Bianca-White and Carbone-Charcoal	0.138” (3.5 mm)	36” x 120” (915 x 3048 mm)
CHESS	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	47.35” x 95.60” (1203 x 2428 mm)
CHEVRON	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 120” (1219 x 3048 mm)
CREEPER	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
CUTTER	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
ECLIPSIS — Door Pattern	STANDARD DOOR PATTERN (Left & Right-hand sheets) (C)	Bianca-White and Carbone-Charcoal	0.260” (6.5 mm)	48” x 96” (1219 x 2438 mm)
EGYPTIAN	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
FABRIC	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
FEATHER	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
FLUTED	STANDARD (B)	Bianca-White and Carbone-Charcoal	0.138” (3.5 mm)	48” x 120” (1219 x 3048 mm)
FROND	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
GRASS-TUNDRA	STANDARD (B)	Bianca-White and Carbone-Charcoal	0.138” (3.5 mm)	48” x 120” (1219 x 3048 mm)
GROOVED	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
HONEYCOMB	STANDARD (B)	Bianca-White and Carbone-Charcoal	0.220” (5.5 mm)	48” x 96” (1219 x 2438 mm)
LOUVERS	STANDARD (B)	Bianca-White and Carbone-Charcoal	0.155” (3.9 mm)	48” x 96” (1219 x 2438 mm)
PETAL	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
PRISMATIC	STANDARD (C)	Bianca-White and Carbone-Charcoal	0.260” (6.5 mm)	48” x 96” (1219 x 2438 mm)
SOLARIS — Door Pattern	STANDARD DOOR PATTERN (Left & Right-hand sheets) (C)	Bianca-White and Carbone-Charcoal	0.320” (8.0 mm)	48” x 96” / 120” (1219 x 2438 / 3048 mm)
THAR	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.1147” (3.7 mm)	48” x 96” (1219 x 2438 mm)
TREAD	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3.0 mm)	48” x 96” (1219 x 2438 mm)
WAVES — CROSS	STANDARD (C)	Bianca-White and Carbone-Charcoal	0.236” (6.5 mm)	48” x 96” (1219 x 2438 mm)
WAVES — HORIZONTAL-1	STANDARD (C)	Bianca-White and Carbone-Charcoal	0.256” (6.5 mm)	48” x 96” (1219 x 2438 mm)
WAVES — HORIZONTAL-2	STANDARD (C)	Bianca-White and Carbone-Charcoal	0.256” (6.5 mm)	48” x 96” (1219 x 2438 mm)
WAVES — VERTICAL	STANDARD (C)	Bianca-White and Carbone-Charcoal	0.256” (6.5 mm)	48” x 96” (1219 x 2438 mm)

Specification values follow the 2026 S3 Surfaces Product Catalogue. Custom colour may be available on a per-project basis. Current commercial availability should be confirmed at enquiry / quotation stage. Physical samples should be used to verify actual colour, texture and finish; handcrafted surfaces may exhibit minor artistic variation.

PRODUCT FAMILY 03

Murals & Portraits

Large-format relief compositions for narrative murals, figurative portraits and other image-led architectural surfaces.

Discuss a Bespoke Project

available visual references

MURALS

narrative & scene compositions

PORTRAITS

figurative relief compositions

BESPOKE

visual development for project needs

This family is presented as a visual portfolio rather than a fixed catalogue table. The supplied references show the range of relief depth, imagery and finish expression currently represented in the S3 library. Final dimensions, material configuration, finish and commercial availability should be confirmed for each project.

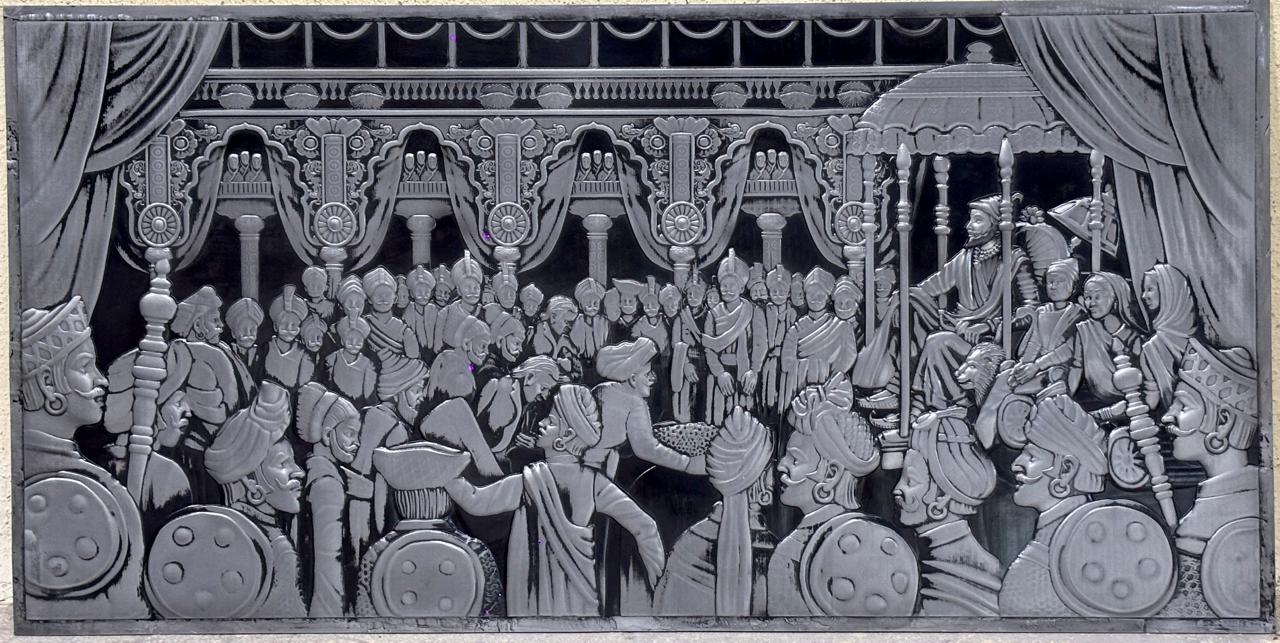

S3 monochrome relief mural showing a historical court scene — Mural · A4

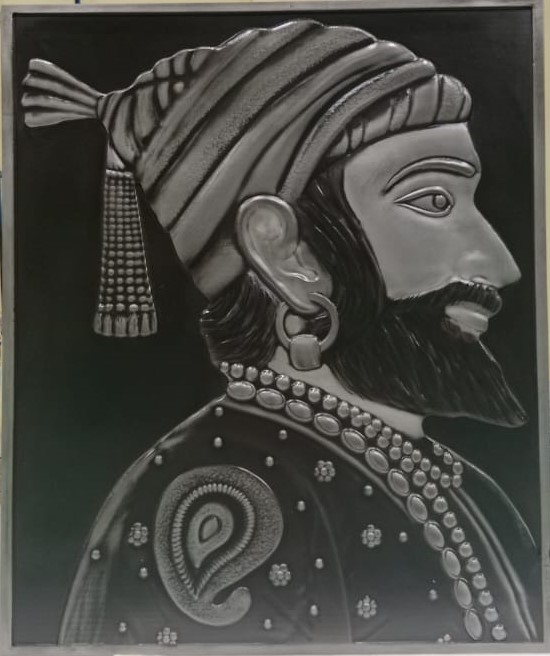

S3 relief portrait in a dark finish — Portrait · MAD

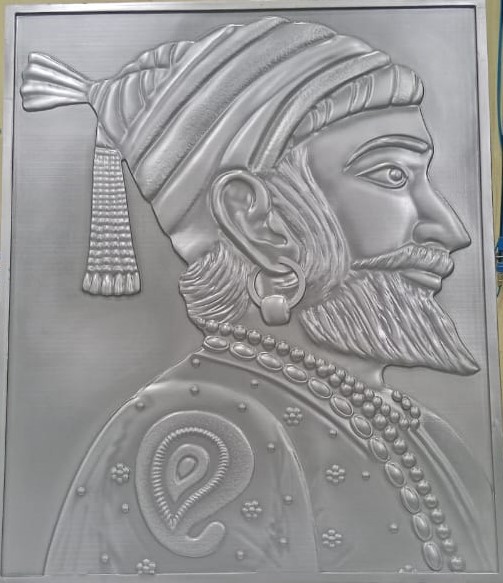

S3 relief portrait in a light finish — Portrait · MAN

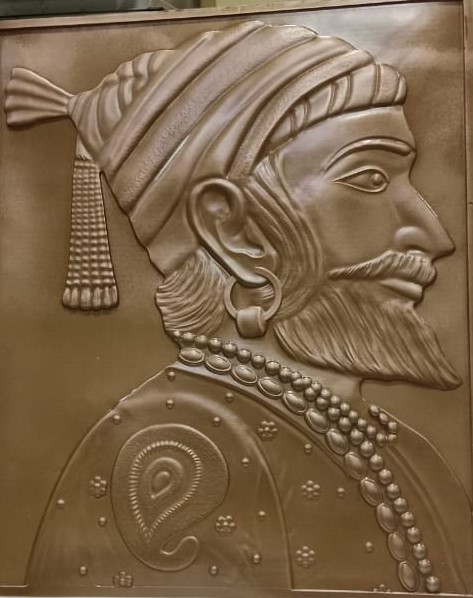

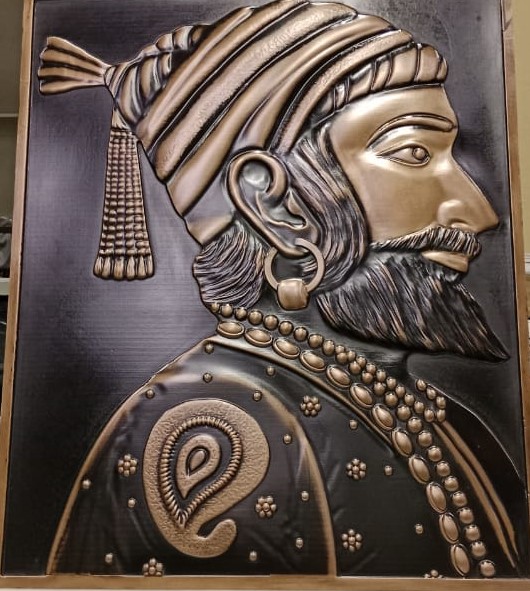

S3 relief portrait in a bronze-toned finish — Portrait · MBN

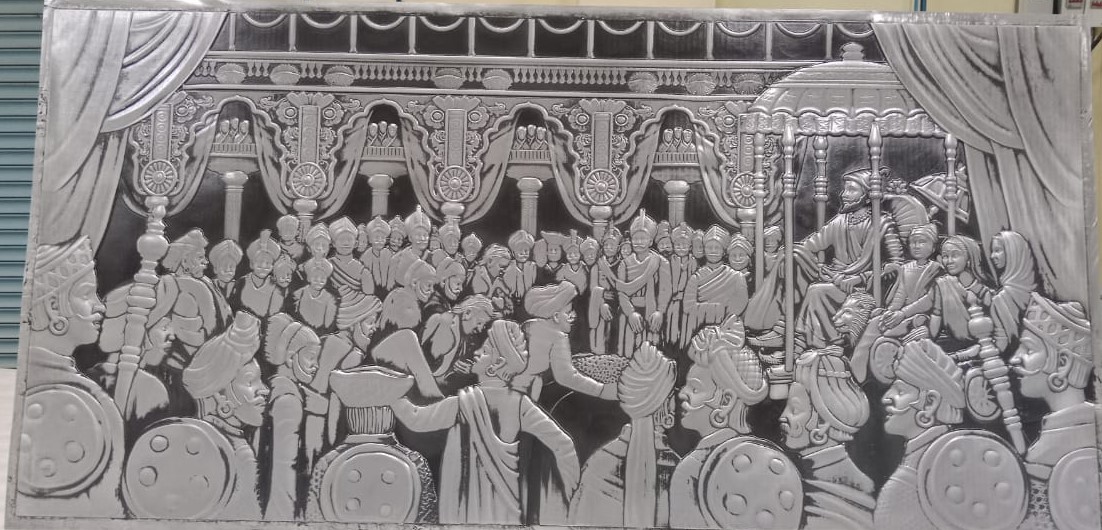

S3 relief mural in a light finish — Mural · RAD

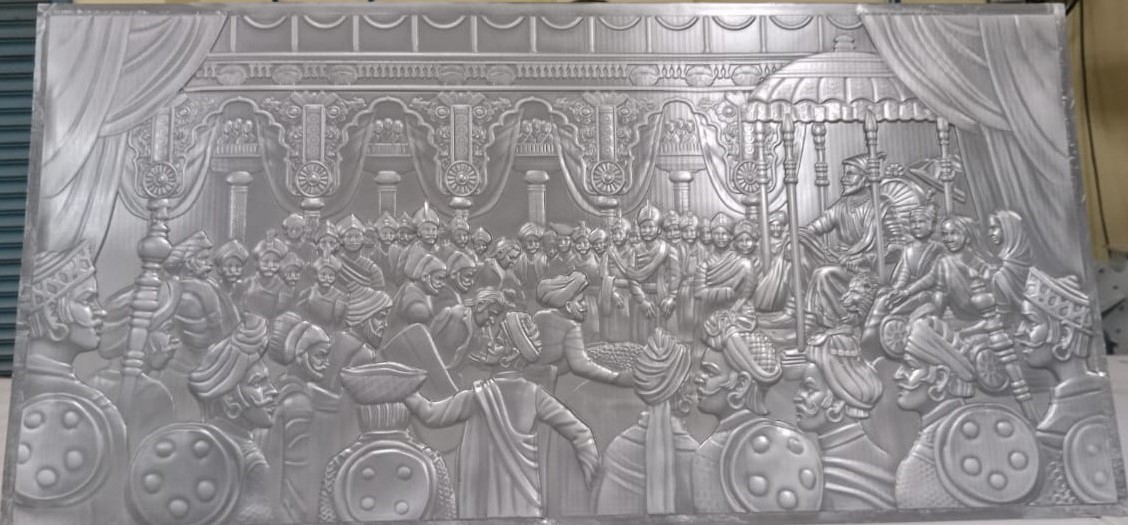

S3 relief mural in a monochrome finish — Mural · RAN

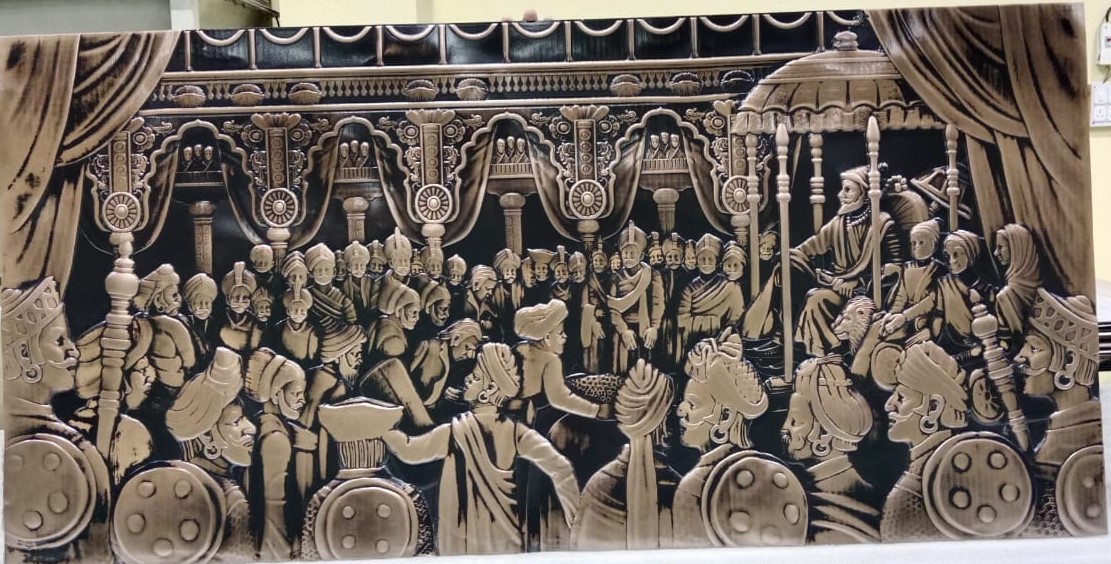

S3 relief mural in a dark metallic finish — Mural · RBD

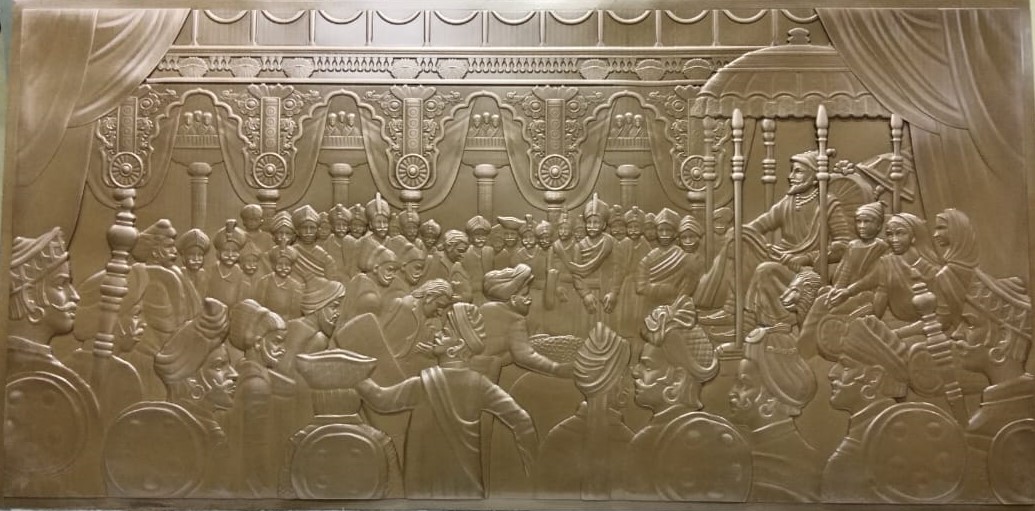

S3 relief mural in a bronze-toned finish — Mural · RBN

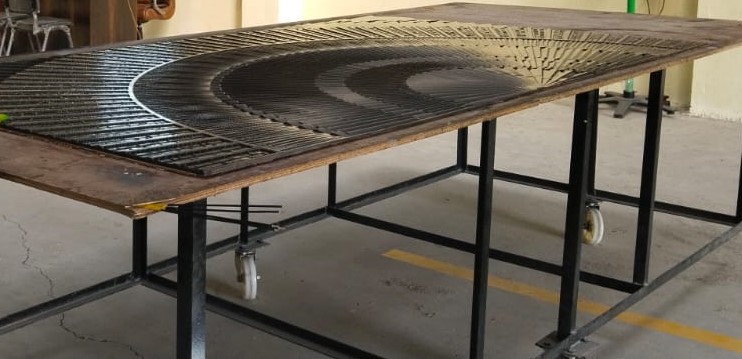

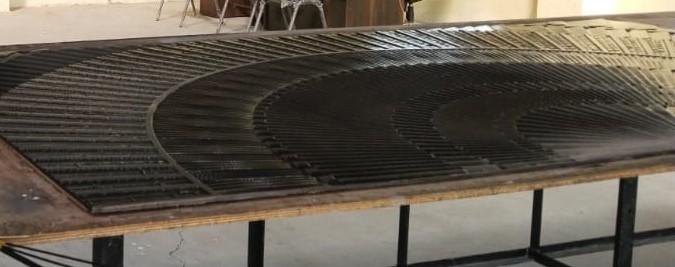

S3 Solaris relief tooling and pattern development reference — Development · Solaris

Visual references currently available in GitHub: 12 non-empty image files. Five additional uploaded filenames — swatches.3.jpeg, swatches.4.jpeg, swatches.5.jpg, swatches.6.jpg and swatches.7.jpg — are currently empty files and are therefore not displayed.
