The colour is part of the casting.
Scratches and blemishes are far less apparent than in materials with surface-applied finishes because colour is integral to the bonded material system.
PRODUCT FAMILY 02
Quartz.
Cast into Texture.
A beautiful, durable architectural surfacing material with a clean, contemporary look — crystallised advanced quartz granules cast into an FRP matrix.
WHAT IS CRYSTAL-QUARTZ?
A contemporary material system.
Crystal-Quartz Bonded is produced by blending crystallised advanced quartz granules with an FRP matrix to create a surfacing sheet that is flexible, lightweight, extremely durable, easy to clean and low-maintenance.
Texture directs light and creates dimension.
Patterns range from intricate textures to refined geometrics to designs that echo nature, with selected patterns available in horizontal and vertical orientations.
COLOUR
Two core colours.
One integral material.
The standard palette is Bianca-White and Carbone-Charcoal. Custom RAL colour shades may be available for larger quantities or on a per-project basis.
Standard coloursBianca-White · Carbone-Charcoal
Custom colourRAL shades may be available for larger quantities
Ordering disciplinePattern · Colour · Size · Quantity
PATTERN SPECIFICATION
Twenty-five documented patterns.
A specification-first pattern index pairing catalogue visuals with the core technical selection fields. Pattern names are linked directly to their corresponding Pattern Library reference.
PatternVisualType / CharacterThicknessSheet SizeStandard Colours
| Pattern | Visual | Type / Character | Thickness | Sheet Size | Standard Colours |
|---|---|---|---|---|---|
| BEAD-BLASTStandard pattern |  | STANDARD (SL/A) | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| CHARLESTON-MATStandard pattern | View library | STANDARD (B) | 0.138” (3.5 mm) | 36” x 120” (915 x 3048 mm) | Bianca-White and Carbone-Charcoal |
| CHESSStandard pattern |  | STANDARD (A) | 0.120” (3 mm) | 47.35” x 95.60” (1203 x 2428 mm) | Bianca-White and Carbone-Charcoal |
| CHEVRONStandard pattern |  | STANDARD (A) | 0.120” (3 mm) | 48” x 120” (1219 x 3048 mm) | Bianca-White and Carbone-Charcoal |
| CREEPERStandard pattern |  | STANDARD (A) | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| CUTTERStandard pattern |  | STANDARD (A) | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| ECLIPSISDirectional / door-specific | View library | STANDARD DOOR PATTERN (Left & Right-hand sheets) (C) | 0.260” (6.5 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| EGYPTIANStandard pattern | View library | STANDARD (A) | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| FABRICStandard pattern | View library | STANDARD (A) | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| FEATHERStandard pattern | View library | STANDARD (A) | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| FLUTEDStandard pattern | View library | STANDARD (B) | 0.138” (3.5 mm) | 48” x 120” (1219 x 3048 mm) | Bianca-White and Carbone-Charcoal |
| FRONDStandard pattern | View library | STANDARD (A) | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| GRASS-TUNDRAStandard pattern | View library | STANDARD (B) | 0.138” (3.5 mm) | 48” x 120” (1219 x 3048 mm) | Bianca-White and Carbone-Charcoal |
| GROOVEDStandard pattern | View library | STANDARD (A) | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| HONEYCOMBStandard pattern |  | STANDARD (B) | 0.220” (5.5 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| LOUVERSStandard pattern | View library | STANDARD (B) | 0.155” (3.9 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| PETALStandard pattern | View library | STANDARD (A) | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| PRISMATICStandard pattern |  | STANDARD (C) | 0.260” (6.5 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| SOLARISDirectional / door-specific | View library | STANDARD DOOR PATTERN (Left & Right-hand sheets) (C) | 0.320” (8.0 mm) | 48” x 96”/120” (1219 x 2438 / 3048 mm) | Bianca-White and Carbone-Charcoal |
| THARStandard pattern | View library | STANDARD (A) | 0.1147” (3.7 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| TREADStandard pattern |  | STANDARD (A) | 0.120” (3.0 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |

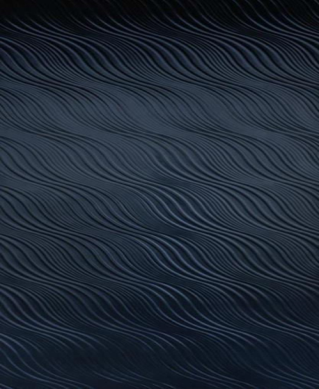

| WAVES (CROSS)Standard pattern | View library | STANDARD (C) | 0.236” (6.5 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| WAVES (Horizontal-1)Standard pattern | View library | STANDARD (C) | 0.256” (6.5 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| WAVES (Horizontal-2)Standard pattern | View library | STANDARD (C) | 0.256” (6.5 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
| WAVES (VERTICAL)Standard pattern | View library | STANDARD (C) | 0.256” (6.5 mm) | 48” x 96” (1219 x 2438 mm) | Bianca-White and Carbone-Charcoal |
PERFORMANCE
A clean, durable architectural surface.
Crystal-Quartz Bonded is documented as flexible, lightweight, extremely durable, easy to clean and low-maintenance. Current CSI documentation specifies NFPA and IBC Class B and UBC Class 2 fire ratings.
Durable
Designed as a high-performance architectural surfacing material.
Lightweight
FRP composite construction supports a lighter surfacing solution.
Flexible
Castings can be used in selected curved applications subject to pattern, thickness and radius.
Easy to clean
Designed for low-maintenance architectural use.
Fire-rated
NFPA and IBC Class B; UBC Class 2, as documented by the current CSI.
Integral colour
Colour is incorporated into the bonded material system rather than surface-applied.
SUSTAINABILITY + WARRANTY
A precise sustainability story.
Environmental documentation is available for specification. A 15-year product warranty applies to covered interior applications.
ENVIRONMENTAL DOCUMENTATION
PED
Product Environmental Data is available for project and specification review through the S3 Specifier Centre.
Refer to the current Product Environmental Data for the documented material and environmental information.
WARRANTY
15 years
Product warranty for covered interior applications. Outdoor installation or use is excluded from the warranty terms.
SEE THE MATERIAL
Explore the texture.
Specify the palette.
Request a physical sample, begin a project discussion, or ask for technical documentation.
